50KW 630mA DR Digital X Ray Equipment Electricity AEC Function

Product Categories
Jiangsu Xiangyou Medical Instrument Co., Ltd.
Contact Now

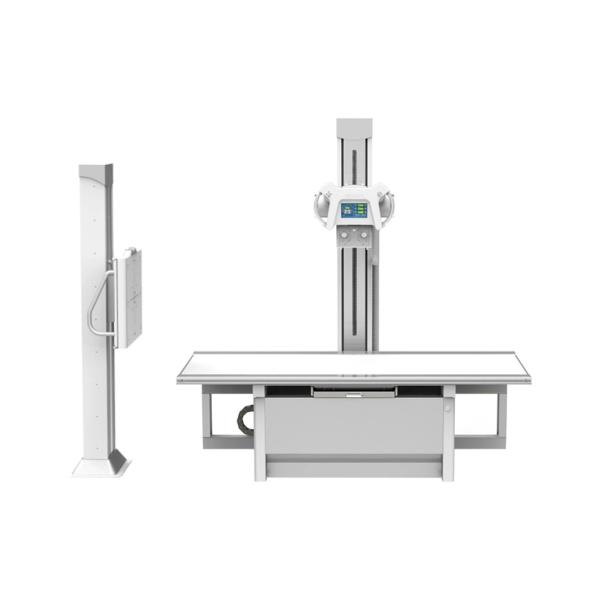

50KW 630mA DR Digital X Ray Equipment Electricity AEC Function

Place of Origin : Jiangsu, China

Brand Name : Healicom

Model Number : HX50R-A

Packaging Details : wooden case

Supply Ability : 1000 Unit/Units per Month

Price : $8,000.00 - $9,300.00/units

Certification : CE

MOQ : 1 pieces

Payment Terms : L/C, T/T

Delivery Time : 3-15 work days

Power Source : Electricity

Warranty : 1 Year

After-sale Service : Online technical support

Material : Metal, Plastic, Steel

Shelf Life : 1years

Quality Certification : ce

Instrument classification : Class II

Safety standard : GB/T18830-2009

Output Power : 50KW

Power Voltage : 380V±38V

kV range : 40~150kV

mA range : 10~630mA

mAs range : 0.1 ~630mAs

Exposure time : 0.002~6.3S

X-ray Tube Small focus : 0.6

X-ray Tube Large focus : 1.2

X-ray Tube Anode speed : 3000r/min

Wire Flat Panel Detector : 17X17inch

Port : shanghai ningbo tianjin

Contact Now

Factory price 630mA Medical DR xray equipment Digital Radiography system 50KW X-ray Machine
Products Description
High Frequency 50KW 630mA X-ray Radiography Machine
Features
1. Rich DR upgrade reserve interface
2. Fault self-diagnosis and protection
3. Automatic calibration of tube current
4. X-ray tube has the function of filament dormancy
5. AEC function, different ionization chamber as optional
6. Analog - digital double - loop control, simple operation, high intelligence
7. High kV, high current, high power,strong penetration,able to handle obese patients
Application
Applicable to orthopedics, emergency room, operating room, etc.
As human head, limbs, chest, spine, lumbar spine for medical diagnosis
50KW 630mA DR Digital X Ray Equipment Electricity AEC Function

Technical Specifications
X-ray generator (include console)
Output Power
50KW
Power Voltage
380V±38V
kV range
40~150kV
mA range
10~630mA
mAs range
0.1 ~630mAs
Exposure time
0.002~6.3S
X-ray tube
Anode Heat Storage Capacity
240kHU
Small focus
0.6
Large focus
1.2
Anode speed
3000r/min
Collimator
Inherent filtration
1.0mm Al /75kV
Light Source
LED
Radiographic Table
Top Table Size
2100X800X650mm
Bucky Size
18X18inch
Table longitudinal movement
≥900mm
Cassette Movement Distance
≥500mm
Vertical Chest stand
Vertical moving range
≥1200mm
Bucky Size
18X18inch
Double Grid
Size
18X18inch
Ratio
1:1
F.D.
100cm
Density
40 L/cm
50KW 630mA DR Digital X Ray Equipment Electricity AEC Function
Clinical Images
50KW 630mA DR Digital X Ray Equipment Electricity AEC Function

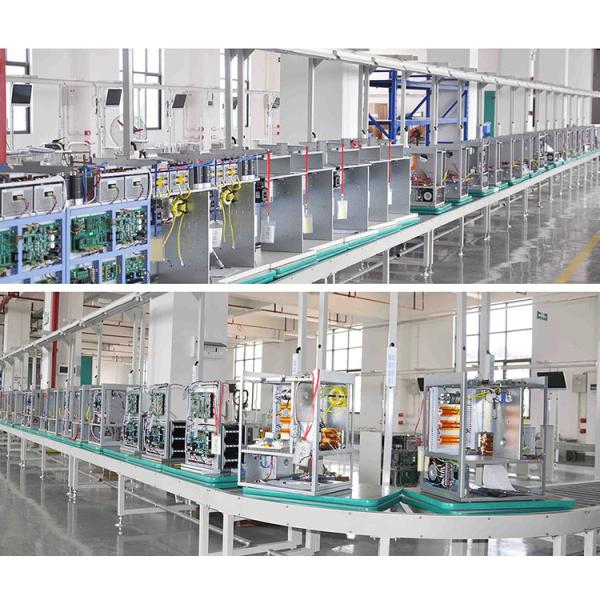

Workshop
50KW 630mA DR Digital X Ray Equipment Electricity AEC Function
50KW 630mA DR Digital X Ray Equipment Electricity AEC Function
